Thank you for your interest in the I-84/ID-50 Kimberly Interchange Project.

The purpose of this online meeting is to provide information about plans to rebuild the interchange to better serve area businesses, motorists, and the surrounding communities.

Click image to enlarge

How to Navigate:

Click on the arrows on the bottom left and right side of your screen.
Use the navigation menu at the left of the screen to revisit any part of the meeting.
The pages are intended to be viewed in order to provide information about the study. However, you may use the tabs on the left side of the page to select any page.

How to Participate:

Click through the slides to learn more about the project.
Comments

Provide your comments at any time by clicking the “ COMMENT" button at the top right of the screen.
You can close the form to continue through the slides. Please make sure to hit the “Submit” button to confirm that your comment is sent to the project team.

The entire session should take less than 15 minutes to complete.

Project Background

The I-84/ID-50 Kimberly Interchange (Exit 182) is a key agricultural and industrial route for accessing the Magic Valley along Idaho Highway 50.

ITD is planning to rebuild the interchange to provide for the continued safe movement of people and goods as commercial and residential growth occurs in the area.

Click image to enlarge

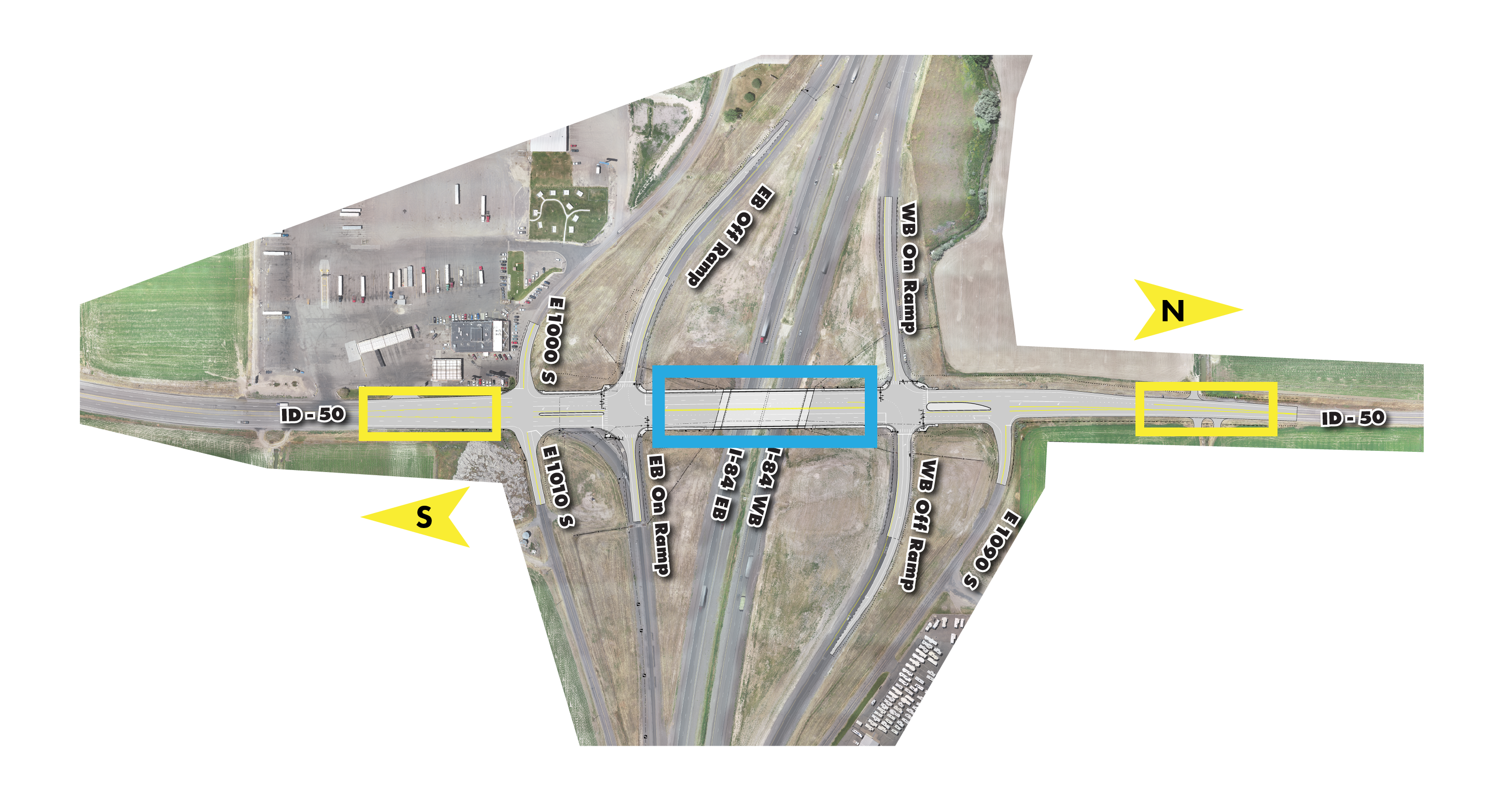

Preferred Design

ITD is moving forward with an Improved Traditional Diamond and will add turn lanes and signals at the existing ramps.

Click images to enlarge

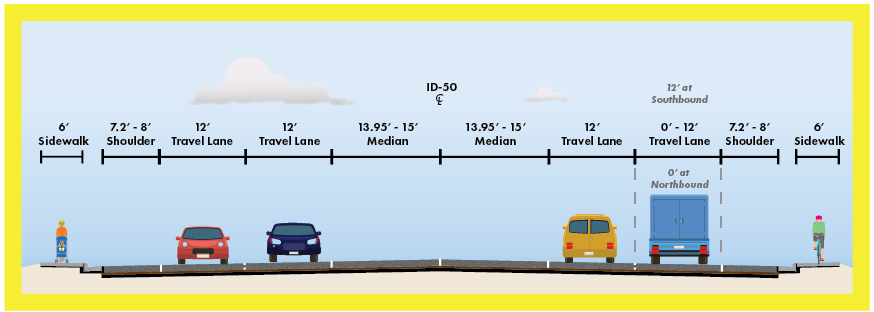

ID-50 Roadway Lane Configuration

Roadway lanes on the north and south side of Idaho Highway 50 (ID-50)

North Side of the Overpass:

6 foot sidewalks on both sides
Approximately 8-foot shoulders on both sides
Two 12-foot travel lanes merging into one heading north
One 12-foot travel lane expanding into two heading south
Approximately 30-foot median between the north and south lanes

South Side of the Overpass:

6 foot sidewalks on both sides
Approximately 8-foot shoulders on both sides
Two 12-foot travel lanes heading north
Two 12-foot travel lanes heading south
Approximately 30-foot median between the north and south lanes

ID-50 Overpass Lane Configuration

Roadway lanes on the overpass

6 and 1/2 foot sidewalks on both sides
8 and 1/2 foot shoulders on both sides
Two 12-foot travel lanes heading south
Two 12-foot travel lanes heading north
14-foot turning lanes to access I-84 to the east and west

How was the design chosen?

ITD used engineering and technical information, traffic analysis, and public input to choose the preferred design.

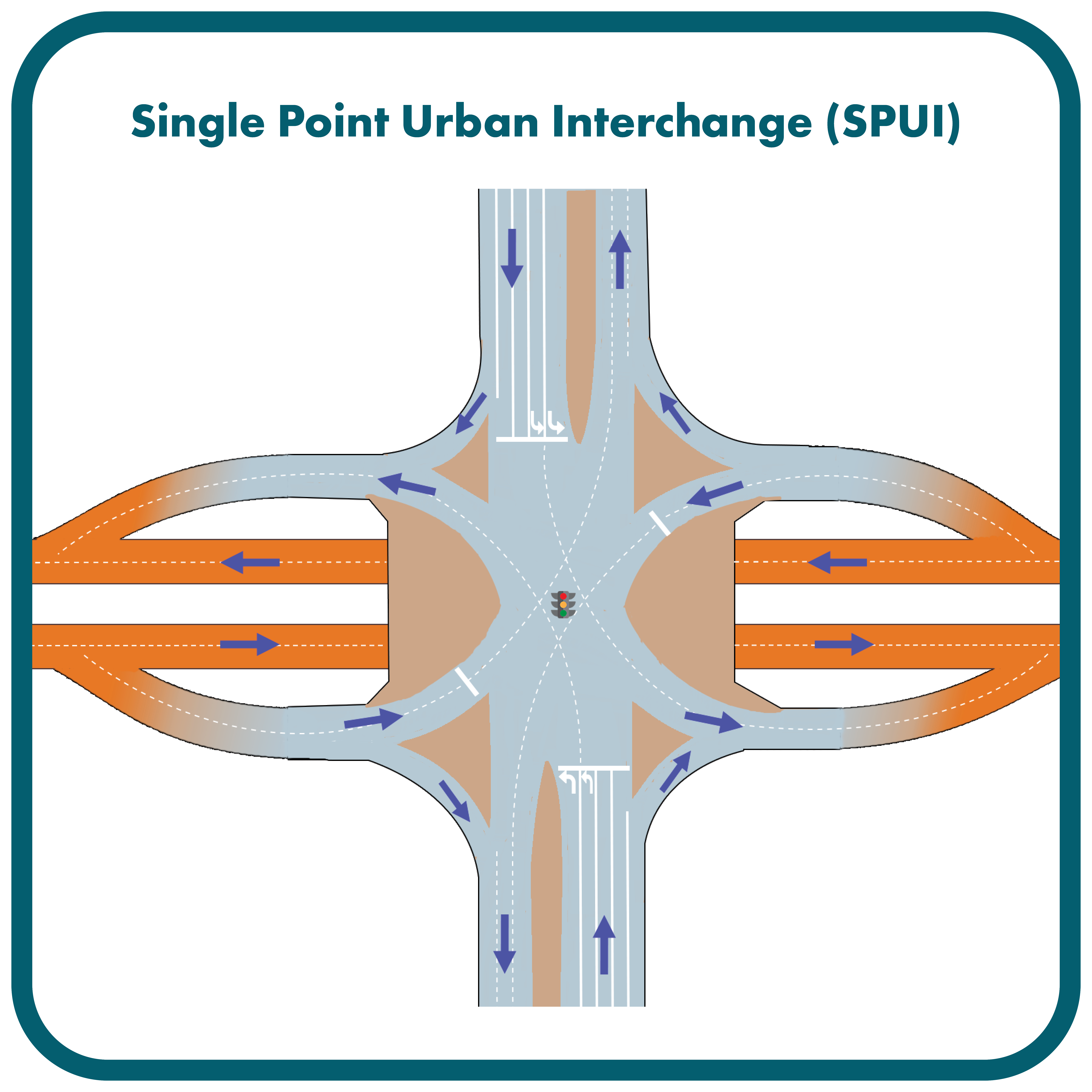

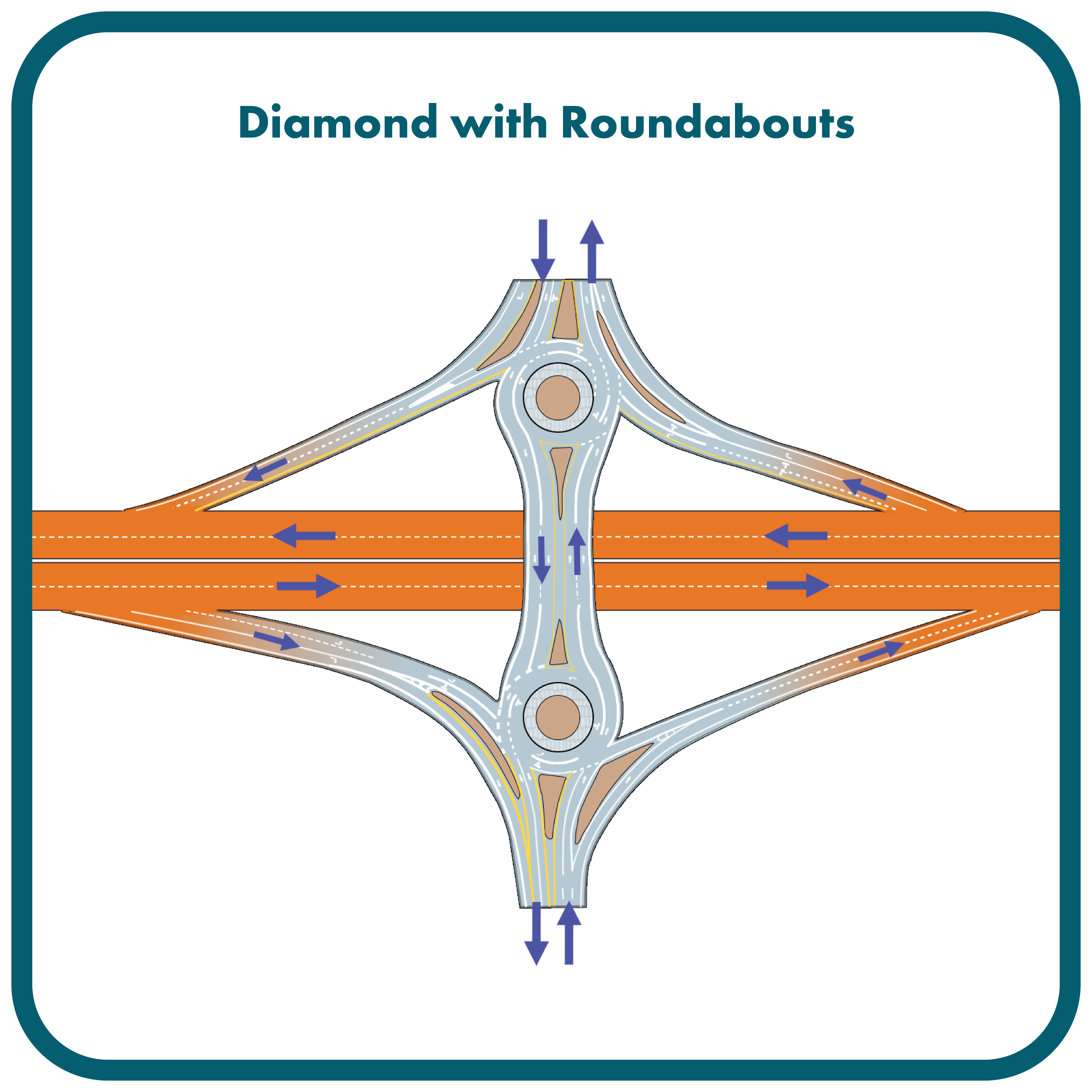

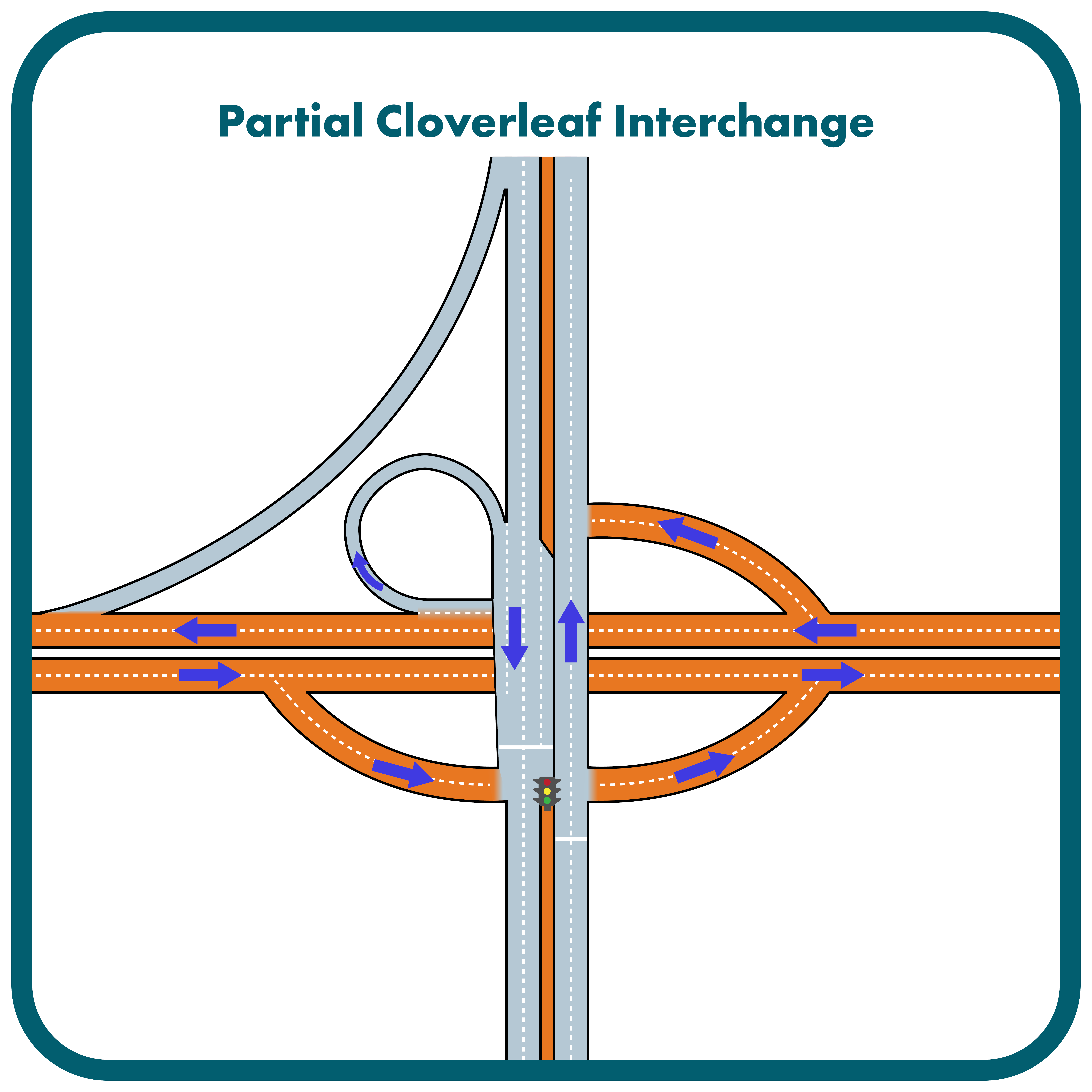

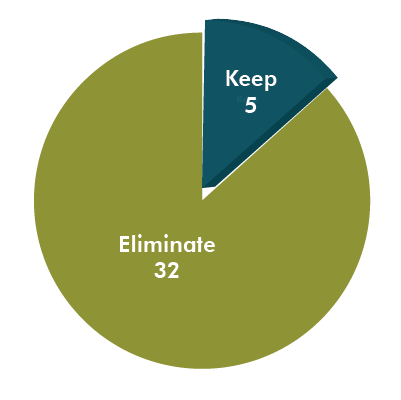

In October 2019, ITD presented five interchange designs and a no-build option at a public meeting. Participants were asked to check Keep or Eliminate for each interchange type presented.
